OData in the node: filters, pagination, timeouts and delta

This guide explains how a node with an OData source works (SAP Gateway, ByDesign, SAP Cloud, SAP Business One): what each field does, how the preview differs from the extraction, how data is paginated, how long Crestone waits for a response, and how delta extraction works with ODP services.

1. Summary

Concept	Where it is configured	What it does
Entity URL	Source step of the node	Indicates which entity is read and with which filters
Parameters	Source step	Adds $filter, $select, $orderby, $top... to the URL
Variables	Source step	Dynamic values (for example dates) used with @name
Page Size	Source step	Number of records requested per call
Select mode (Full / Delta)	Source step, ODP services only	Full load or changes only
Maximum wait time (minutes)	Settings tab	Maximum time to wait for each request to SAP

2. The connection and the Entity URL

The connection

The Service URL of the connection is the base of the service and must not include the service name. The service is specified later, in the node. Example of a base:

http://<server>:50000/sap/opu/odata/sap/

The node's Entity URL

In the node, enter the service and the entity, and optionally the filter:

ZCRESTONE_MATERIALATTR_SRV/EntityOf0MATERIAL_ATTR

tip

Some connections already include the service in their base URL (for example .../ZCUSTOMER_ODATA_5_SRV/). In that case, the Entity URL contains only the entity (EntityOf0CUSTOMER_TEXT). Repeating the service causes a 404 error.

3. Parameters, filters and $top

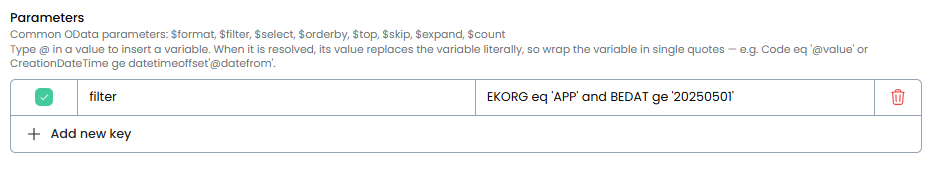

The Parameters table adds OData parameters to the URL (key and value, with a checkbox to enable them). The most commonly used are $filter, $select, $orderby, $top, $skip, $expand and $count.

Rules applied by Crestone:

• It always requests the response in JSON ($format=json). On SAP Business One Service Layer it does not add it, because that service does not accept it.
• Spaces in the filter are sent as %20, which every service accepts (ByDesign does not accept +).
• The filter can be written in the Entity URL itself or in the table; the editor keeps both in sync.

Filter example:

ZCREST_2LIS_02_HDR_SRV/EntityOf2LIS_02_HDR?$filter=EKORG eq 'APP' and BEDAT ge '20250501'

What $top means in each place

Where	What it means
In the preview	Maximum number of rows shown: 30. If there is no $top, 30 is used; if there is a larger one, it is lowered to 30
In the Entity URL, when extracting	Total limit of records. The extraction stops when it reaches that number
Without $top, when extracting	Everything is retrieved, page by page

caution

A $top in the URL is not the page size, it is the total limit. To control how many records are requested per call, use Page Size (section 6).

4. Dynamic variables

Variables let you use a value that changes on every run (for example a date) inside the filter.

1. Create the variable in Create variable, with a name (datefrom) and a default value.
2. Use it in the filter with @: $filter=CreationDate ge '@datefrom'.

Rules:

• The substitution is literal: Crestone does not add quotes. If the service needs them (dates, text), write them in the filter ('@datefrom'); for numbers, omit them.
• The value can be an expression, for example yesterday's date: {{ (today() - timedelta(days=1)).strftime('%Y-%m-%d') }}. It must be formatted the way the service expects.

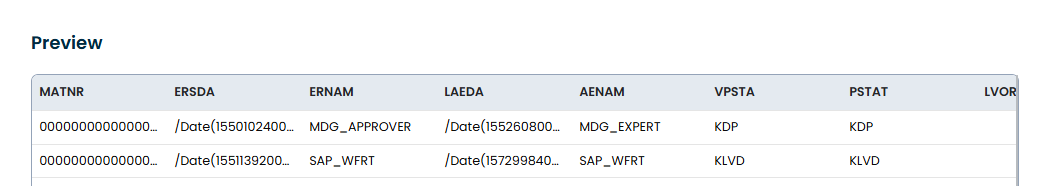

5. Preview and extraction: what changes

	Preview	Extraction
Records	Maximum 30	All records that match the filter (or the $top limit)
Wait time	Fixed: 300 seconds	The node's setting (section 7); 300 s by default
Pagination	No: a single request	Yes (section 6)
Delta	Not applicable	Yes, if the node is in Delta
SAP Business One with several companies	Shows only the first one	Combines all the selected ones

caution

A working preview does not guarantee that the extraction will work. On slow services, a 30-row preview may respond fine while the full extraction needs much more time, or the other way around. The preview also does not use Delta mode.

6. Pagination and Page Size

When extracting, Crestone requests the data page by page. Depending on the type of service, it uses one of three modes:

Service	How it paginates	Page Size
Standard OData (Gateway, ByDesign, Cloud)	Requests $top records with an increasing $skip, until a page comes back incomplete	It is the $top of each request. Default: 50,000
ODP services (EntityOf... / FactsOf...)	Server-side pagination: sends the Prefer: odata.maxpagesize header and follows the __next link returned by SAP	It is the size requested from SAP
SAP Business One (session login)	Prefer: odata.maxpagesize header, and follows odata.nextLink	Empty = the Service Layer's default (normally 20)

Why pagination on an ODP service is different

On an ODP service, every request with $skip makes SAP run the whole extractor again, which can take minutes per page and return repeated data. With server-side pagination, SAP extracts only once and the following pages come from a queue within seconds. That is why on an ODP service you do not need to (and should not) use $top.

tip

To extract everything from an ODP service, do not put $top in the URL. If you do, Crestone goes back to classic pagination with $top and $skip, and Delta mode stops applying.

Page Size

This is the Page Size (optional) field. Lower it if the service runs out of time with large pages. If empty, the default value is used (50,000, or the B1 default).

7. Wait time and retries

Wait time

This is the maximum time Crestone waits for the response to each request to SAP; it is not the total duration of the execution.

Where	Value
Default	300 seconds (5 minutes)
Maximum wait time (minutes) field in the node's Settings	Whatever you set, up to a maximum of 720 minutes (12 hours)

Recommendations:

• If the service is slow (an ODP service without a filter can take many minutes to return the first page), increase the node's value.
• The preview does not use this value: it always waits 300 s.
• A ReadTimeout means SAP did not respond in time. It is not a Crestone error; you need to filter more, lower the Page Size or extend the wait time.

Retries

If the connection drops in the middle of a page (for example because of a VPN or the server), Crestone retries that page up to 3 times, waiting 5 and 15 seconds between attempts. A ReadTimeout is not retried: the full configured time was already waited.

Cancellation

When you cancel an execution from Monitoring, the OData extraction stops before requesting the next page.

8. ODP services: things to know

An ODP service exposes a SAP extractor (for example 2LIS_02_HDR, 0MATERIAL_ATTR) as OData. They are recognized by the entity name: EntityOf... or FactsOf....

• Filters: filterable fields usually accept a single interval (eq, or ge and le). They do not accept or: for several values, create one node per value.
• A filter that SAP does not apply (for example a field that is not a selection field in the extractor) does not raise an error, but returns data outside the filter. Fix it by marking the field as a selection field in SAP.
• Without a filter, the first page can take a long time, because SAP goes through the whole extractor before responding.
• $count totals may not be reliable on these services; do not use them to size the load.
• Cancellation rows: in transactional extractors (2LIS), records with ROCANCEL = X arrive, which cancel a previous image (see section 10).

9. Delta extraction

What it is

In Delta mode, the first run loads all the data and the following runs bring only the changes since the last time. It is available only for SAP Gateway ODP services.

How to enable it

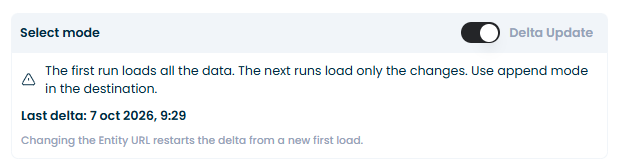

In the Source step, below Create variable, the Select mode option appears (only for EntityOf... / FactsOf... entities). Turning the switch on changes it to Delta Update.

How it works

Run	What it does
First (initialization)	Asks SAP for change tracking (Prefer: odata.track-changes), loads everything and saves the starting point
Following	Start from the saved point and bring only the changes
No changes	Ends as No data; the starting point still advances
With an error loading to the destination	The starting point does not advance: the next run repeats the same delta and no changes are lost

What is stored in the node

When a delta run finishes successfully, a deltaState block with three attributes is added to the node's source:

Attribute	What it is
link	Link with the token from which SAP delivers the changes on the next run
urlKey	Fingerprint of the Entity URL. If the URL changes, the delta starts over
updatedAt	Date of the last saved delta run

The screen shows that date as Last delta, in your local time. It is the date of the last run that finished successfully, not the date of the last change received.

What happens when the configuration changes

If...	Then...
You change the Entity URL (for example, you add a filter)	deltaState is discarded; the next run is a new initial load
You switch to Full	deltaState is discarded; the rest of the configuration stays the same
You switch back to Delta	The first run is an initialization
The URL has $top	Delta does not apply: Crestone warns and runs in Full
The entity is not ODP	The selector does not appear

caution

Filters are fixed at initialization. If the filter uses a variable whose value changes on every run, that change is not sent to SAP: the delta keeps using the filter from the first run. This is inferred from how delta works and has not been verified. For delta, it is best to use fixed filters.

If a run fails

• It fails before or during the load to the destination: the starting point does not advance and the next run brings what is pending plus the new changes. No manual step is needed.
• SAP keeps the delta data in a queue (ODQ) for a limited time. If a long time passes without running, SAP may discard that point and you would need to reinitialize (switch to Full and back to Delta). The retention period of each system is not confirmed: it is best to schedule frequent runs.

10. What arrives when a record changes: the row pair

How changes look depends on the extractor.

Transactional extractors (for example 2LIS): two rows per change

When a record is modified, SAP does not send only the new value: it sends two rows.

Row	ROCANCEL	What it contains
Before image	X	The record as it was before, marked as a cancellation (amounts and quantities come inverted)
After image	empty	The record as it is now

Illustrative example: the purchasing group of an order is changed from 002 to 003.

EBELN	ROCANCEL	EKGRP
4500000589	X	002
4500000589	(empty)	003

When a record is created, a single row arrives (the new one). A run without changes brings no rows.

How to use it in the destination:

• Load in append mode and sum the measures: the cancelled row subtracts the previous value and the new one adds the current value, so totals come out right.
• To see only the current state of each record, filter on an empty ROCANCEL.
• Do not merge by key: the cancelled row and the new one would overwrite each other.

info

Changes to order items (price, delivery date) do not arrive in the header extractor: they belong to the items extractor (2LIS_02_ITM) or the schedule lines extractor (2LIS_02_SCL). Each extractor's delta only brings changes to its own fields.

Master data (for example materials): one row per change

Extractors such as 0MATERIAL_ATTR have no ROCANCEL: they deliver one row per change, and the ODQ_CHANGEMODE column indicates the type (C is a creation). Since there is a unique key per record (MATNR), it is best to load with upsert by key.

• The first delta run may bring old records that SAP had pending, in addition to the new ones. This is SAP behavior.
• With this type of extractor, SAP depends on change pointers: if they are not active, the delta always comes back empty.

11. Common errors

Message	Likely cause	What to do
Credentials invalid (401)	Wrong user or password, or SAP session locked	Check the connection
No service found (403)	The service is not active or the user lacks permission	Check the service in SAP
Container not found (404)	The entity or the service does not exist, or the service name is repeated	Check the Entity URL (section 2)
The url has not a valid system query option (400)	A parameter the service does not accept (nonexistent field, or on an interval field)	Try without the filter and add it back one at a time
Unexpected error with SAP text in the detail	Internal error in the service. The detail shows the message SAP returned	Look up the ID in SAP transaction /IWFND/ERROR_LOG
Read timed out	SAP did not respond within the time limit	Increase Maximum wait time, filter more or lower the Page Size
Delta mode ignored (in the console)	The entity is not ODP or the URL has $top	Remove $top or use an EntityOf... entity
Entity URL changed since the last delta (in the console)	The URL was changed	This is expected: the delta restarts
